 Valkir's BL-28 series blaster WIP (SWTOR Based)

  • 9 Replies
  • 3670 Views
Valkir's BL-28 series blaster WIP (SWTOR Based)
« on: Jun 27, 2016, 07:43 AM »
So…. Then this happened…

I got tired of sanding and priming, but I will get more pics of the bucket shortly… ears and all.
You can see the armor build here: http://mandalorianmercs.org/forum/index.php?topic=92998.0

I felt like doing a bit of CAD work this evening and went through SWTOR collections to find a Swarsian weapon that I could use for pistol/carbine/rifle. I wanted something that looked old school and looked like the kind of weapon you see in the films, so something that used real world weapon parts in the design.

I settled on the BL-28 series, with its nod to the Lee Enfield…. I like wood :P

I felt the design was a little plain so I added a similar bolt action as the Lee Enfield and a logical resonance chamber disconnect to the left side of the weapon, pull the little pin, swing the leaver up and the chamber would drop free. It’s not done but you can see the progress here.

I currently have it designed with a working bolt action that forces the hammer back when cycled. When in rifle/carbine mode with the stock, the hammer will not be seen as it is hidden by the stock extension.

I am thinking of casting the receiver up in white metal and using real wood grips, stock and fore end. I will 3D print it, clean up the print and create a mold, If I can get away with it I will cast it in hard pewter, something about the same as zinc casting (pot metal airsoft equivalent) If that does not go well I will just do an aluminum filled resin cast,


Any whoo… enjoy. I will try to get shots of the bucket up tomorrow.

Game renders:










Renders of my work:
This is just the receiver, no barrel etc. I am trying to design it so that I can choose the weapon I want and lock the correct front barrel assembly and stock in place.

I would imagine the bolt action allows you to load a power supply into that front section with the round light (resonance chamber?), the hammer would be a safety, or power disconnect, with the hammer cocked, the weapon would not fire, I am thinking of it like a circuit breaker, the hammer would need to be down on the bolt to complete the circuit. Makes sense to me at least :P














Den Barren


    *
  • *
  • 1702
  • Meg cuyir ogir at akaanir a te akaan Tio'r.
  • Awards Clan with the largest number of new OM's in 12 months Award for 10 official invasions.
Re: Valkir's BL-28 series blaster WIP (SWTOR Based)
« Reply #1 on: Jun 27, 2016, 10:51 AM »
I like the designs! :)

Logged
"Tion ke'gyce ner kad al'ijaat?"~What guides my sword if not honor?



Backstory
WIP Links
YouTube Mando Armor Tutorial Channel
Re: Valkir's BL-28 series blaster WIP (SWTOR Based)
« Reply #3 on: Jun 29, 2016, 04:17 AM »
A bit more progress on the models.

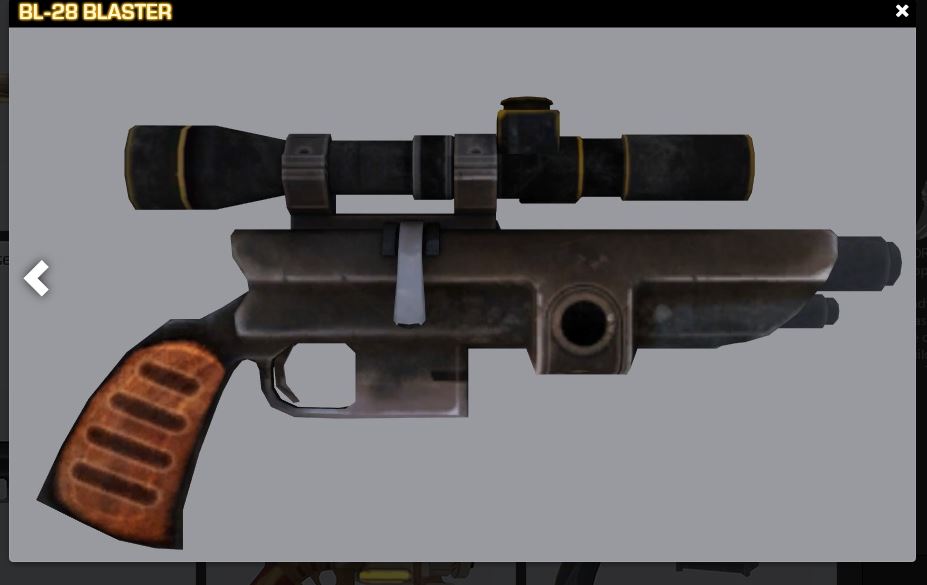

I created the scope and scope mount, the pistol barrel assembly and the carbine (SWTOR blaster rifle version). Although I think I prefer my carbines with a stock… what-du-ya think, with or without stock?

P.S. the latest helmet picks are up... just follow the link in my signature.

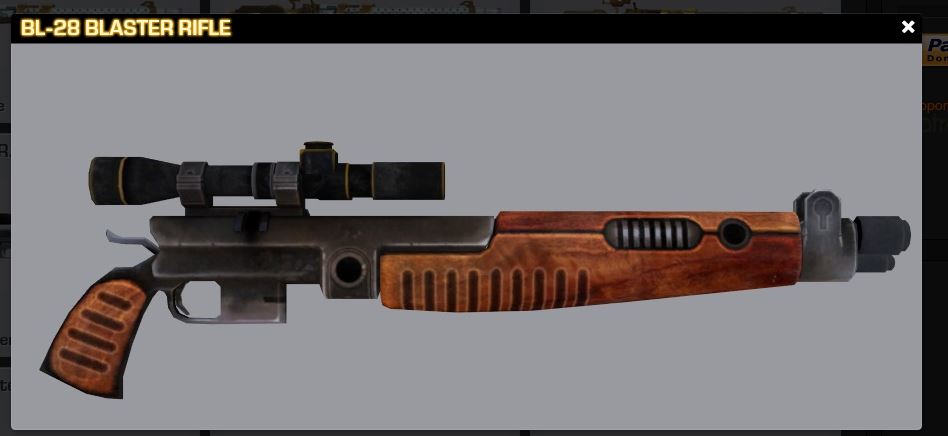

Classic SWTOR BL-28 Blaster Rifle
