1st WIP set, clone backpack and other
« on: Jan 25, 2019, 11:26 AM »
- Hi.
I am from Russia. I recruit in Red Fist Clan (Russian MMCС)
I apologize in advance for bad English. I write with Google translator.
The beginning of the build here: http://mandalorianmercs.org/forum/index.php?topic=126405.0,  but I was advised to create a theme from you. :)
I'm not going to copy everything, just what I'm working on.

The armor has been in process since 2017. PVC material 5 mm
Ready helmet, and all, that see on me now.

Plastic vizor and tinting coating 10%




Medical backpack (clone backpack).
Share the process. All made by hand, PVC sheet 5 mm, with toy clone soldier.
There were no exact drawings.

Step one: Everything was done first from a thick paper layout. Then it was cut on a PVC sheet.
Step two: make side pockets
Small details glue together with glue, cover with a mix a surface where cracks. Dries one day, the surface is sanded with sandpaper.



Step three: the Back and front of the MEDPACK (clone backpack).
The back part is easy to assemble. Clear lines, minimum cost and effort. The front panel of the backpack takes a lot of time. Because it has a special shape. Bend the sheet, from the inside fasten the corners on the glue. Hard work.



Step four: build clone backpack
All elements of the backpack before Assembly.





Step five: painting
Spray paint high pigmentation “Arton”, N-110 cream.



Step six: Applying the medic's emblem.
Used acrylic paint, applied with an artistic brush by hand.



Step seven (not the last): make a fabric cover and straps.
My straps are orange, the color of the armor sewn on top of the black straps.

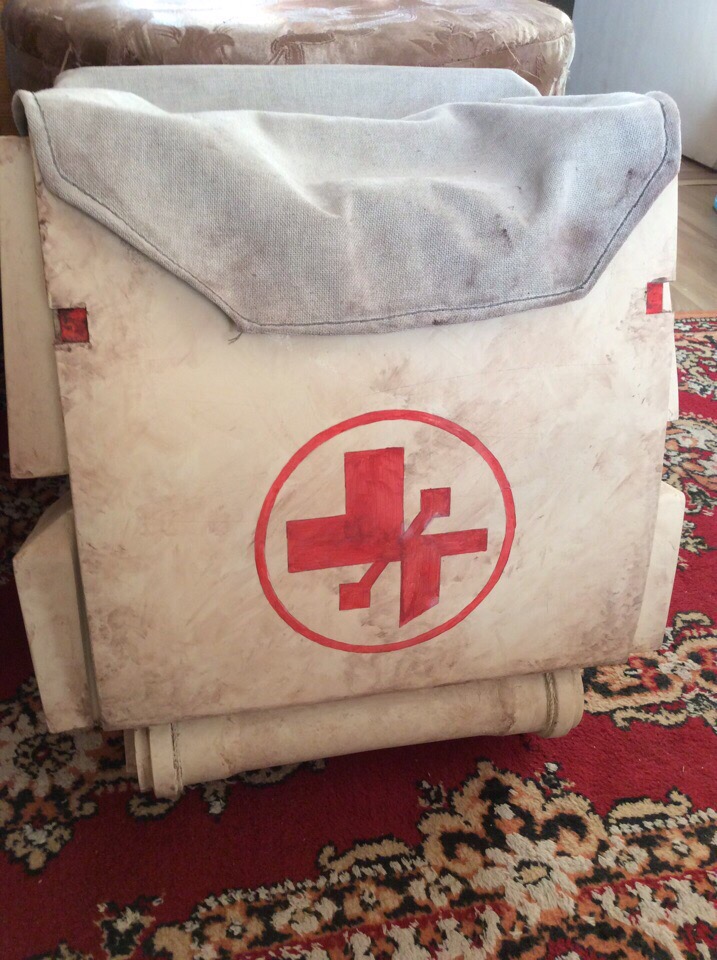

Step eight: surface contamination





Step nine: fill it with medical instruments. In the process!
The straps are comfortable when wearing clone backpack. The weight of the empty backpack clone a 1.7 kg (3.74 lb)

And now photo with clone backpack.



Photo from the festival Opencon 2018 Kazan






Knife. Will be attached to the belt. Made of PVC 5 mm.




In the process the armor for the back.

I would be grateful for advice and recommendations.   :porg1:

« Last Edit: Jan 26, 2019, 04:50 AM by Yua_Lis » Logged
Mama always said life was like a box of chocolates. You never know what you’re gonna get. (с) Forrest Gump

jett drexel


    *
  • 2558
  • a long time ago in a living room far far away...
Re: 1st WIP set, clone backpack and other
« Reply #1 on: Jan 25, 2019, 11:33 AM »
 :like: :like: :like:

Logged

Novoc Mereel


    *
  • 994
  • Back with a vengeance! He/Him
Re: 1st WIP set, clone backpack and other
« Reply #2 on: Jan 25, 2019, 12:41 PM »
That backpack is incredible!!! Well done!!

Neomandalore


    *
  • *
  • 1387
  • I would like butter on that croissant of doom
  • Awards Award for 10 official invasions. Award for 25 official invasions. 11+ Invasion Report Appearances 15+ invasions in 2018 Special Weapons
Re: 1st WIP set, clone backpack and other
« Reply #3 on: Jan 25, 2019, 01:42 PM »
Very good work on that backpack! I shared it with a clan mate who is looking to build something similar. Your armor is coming along nicely as well.

Yua_Lis


    *
  • 16
  • Fox Vizsla
Re: 1st WIP set, clone backpack and other
« Reply #4 on: Jan 25, 2019, 02:47 PM »
That backpack is incredible!!! Well done!!

Thanks  :)



Very good work on that backpack! I shared it with a clan mate who is looking to build something similar. Your armor is coming along nicely as well.

Thank you for your feedback.  :porg1: Work on the backpack is almost complete. Remained interior decoration. Progress will be here soon. The armor's in the process too.

« Last Edit: Jan 26, 2019, 01:07 PM by Havelock » Logged
Mama always said life was like a box of chocolates. You never know what you’re gonna get. (с) Forrest Gump

Cattfish


    *
  • 1150
  • If at first you don't succeed, blow something up.
  • Awards 40+ hrs Charity 11+ Invasion Report Appearances Award for 10 official invasions. Award for 25 official invasions. Clan with the largest number of new OM's in 12 months
Re: 1st WIP set, clone backpack and other
« Reply #5 on: Jan 25, 2019, 03:54 PM »
Love how your pack turned out. Been wanting to make one myself, but I've been putting it off cause I haven't wanted to figure out measurements for it.  You may have inspired me to sp being lazy.  :laugh:

Logged
OOPS #40 - ALUMINATI #52 - VABS - TPS #8
Troop Counter: 54

Yua_Lis


    *
  • 16
  • Fox Vizsla
Re: 1st WIP set, clone backpack and other
« Reply #6 on: Jan 25, 2019, 04:16 PM »
Love how your pack turned out. Been wanting to make one myself, but I've been putting it off cause I haven't wanted to figure out measurements for it.  You may have inspired me to sp being lazy.  :laugh:

Thanks. I'm glad. :)

Logged
Mama always said life was like a box of chocolates. You never know what you’re gonna get. (с) Forrest Gump

Jennari


    *
  • 2237
  • "I am the best. Always was." - Jango Fett
  • Awards Celebration Anaheim 2022
Re: 1st WIP set, clone backpack and other
« Reply #7 on: Jan 25, 2019, 04:38 PM »
Very cool!

Blackdugal


    *
  • 722
  • Awards 6 or more Education Points in a single year. Order of the Ori'Ramikad Award for 25 official invasions. 11+ Invasion Report Appearances 15+ invasions in 2017
Re: 1st WIP set, clone backpack and other
« Reply #8 on: Jan 25, 2019, 09:21 PM »
Very nice!

Havelock


    *
  • 11989
  • I probably have a link for that.
  • Awards Celebration Anaheim 2022 6 or more Education Points in a single year. Award for 10 official invasions. Order of the Ori'Ramikad Celebration Orlando 2017
Re: 1st WIP set, clone backpack and other
« Reply #9 on: Jan 26, 2019, 01:09 PM »
As part of my moderation duties I must request that you please avoid Double Posting in the forums.  This is against forum rules as documented HERE.

Quote
Double Posts - Please refrain from posting immediately after yourself, also known as 'double posting'.
If no one has replied use the "modify" button to update your post.
WIP threads and other similar threads that have new content being added are exempt from this rule, provided the posts have useful new posts being added.
In such exemptions, replies to multiple questions when attempting to catch up should still be combined into single posts.
Moderators will exercise their best judgement, if you feel an error was made please contact the Moderator Lead and Tech Officer via PM.

The posts have been combined.



Now that that's out of the way - your kit looks great, and that backpack is phenomenal!

Logged
"Sometimes it's better to light a flamethrower than curse the darkness."  - Terry Pratchett
Have you explored all that the Royal War College of Mandalore has to offer?

Yua_Lis


    *
  • 16
  • Fox Vizsla
Re: 1st WIP set, clone backpack and other
« Reply #10 on: Jan 26, 2019, 04:58 PM »
Apologies. Ill keep that in mind. Also huge thanks for feedback.

 :porg1:

Logged
Mama always said life was like a box of chocolates. You never know what you’re gonna get. (с) Forrest Gump

Yua_Lis


    *
  • 16
  • Fox Vizsla
Re: 1st WIP set, clone backpack and other
« Reply #11 on: Feb 18, 2019, 08:39 AM »
Ready lining for backpack!!  :porg2:




Sewed Velcro to the fabric and glued to the inside of the backpack




finished product:  :porg1:




theme with size for a backpack here: https://mandalorianmercs.org/forum/index.php?topic=165693.0  :porg2:  :porg2:

Logged
Mama always said life was like a box of chocolates. You never know what you’re gonna get. (с) Forrest Gump

Havelock


    *
  • 11989
  • I probably have a link for that.
  • Awards Celebration Anaheim 2022 6 or more Education Points in a single year. Award for 10 official invasions. Order of the Ori'Ramikad Celebration Orlando 2017
Re: 1st WIP set, clone backpack and other
« Reply #12 on: Feb 18, 2019, 12:36 PM »
Your kit looks absolutely amazing, vod.  Keep up the great work.

Logged
"Sometimes it's better to light a flamethrower than curse the darkness."  - Terry Pratchett
Have you explored all that the Royal War College of Mandalore has to offer?

Straka Zulu


    *
  • *
  • 11911
  • Ke nu'chayaiki ni, gar kar'tayli ner bora...
  • Awards Hard Contact - Clan with the most recorded invasions Donated four quarters of 2024. Awarded to individuals with at least 40 hours recorded of Invasion service in a 6 or more Education Points in a single year. Award for 25 official invasions.
Re: 1st WIP set, clone backpack and other
« Reply #13 on: Feb 18, 2019, 09:46 PM »
VERY nice!! But I am biased to orange and black. :laugh:

 :like: :jango: :like:

Logged
MMCC # 1126, W.B. #000 (founder), MAJIC #152, M5SP #19, L.O.B. #5, S.O.S. #007, MIB #13, QMU Support #44, Draluram #006

Skullsfactor


    *
  • 178
  • " Unlucky 13 "
  • Awards Recruitment - Clan with the largest number of new OM's in 12 months
Re: 1st WIP set, clone backpack and other
« Reply #14 on: Mar 25, 2020, 01:31 PM »
That's an awesome backpack, by any chance you can send me the dimensions of all the parts . If you have it of course! Thanks in advance

Logged
MMCC #1384
B.O.O.M #19
B.O.M.B #60
S.O.S #20
MAJIC #156

Vercopaanir


    *
  • *
  • 1677
  • Fix'em or Finish'em
  • Awards Ground Pounder - Official Member with the most recorded invasions Award for 50 official invasions. Medic Brigade Member Special Operations Brigade Member Special Weapons
Re: 1st WIP set, clone backpack and other
« Reply #15 on: Mar 27, 2020, 04:39 PM »
Awesome backpack.  I might just have to make one for myself...with a few tweaks of course.  :)

Logged

Ursa Wren WIP
WIP Armor
WIP Helmet
WIP Weapons [url=https://mandalorianmercs.org/forum/index.php?topic=

Yua_Lis


    *
  • 16
  • Fox Vizsla
Re: 1st WIP set, clone backpack and other
« Reply #16 on: Sep 13, 2022, 05:15 PM »
That's an awesome backpack, by any chance you can send me the dimensions of all the parts . If you have it of course! Thanks in advance

Размеры рюкзака здесь: https://mandalorianmercs.org/forum/index.php?topic=165693.0
