Budget Lighted Rangefinder Topper
« on: Nov 15, 2014, 02:47 AM »
I started building this a few weeks ago. It's ready for a "soft debut". There's also a thread for it in the supply depot interest section.
Here a few shots of the lighted rf topper prototype when lit. This is a rough proto, so don't judge me on it.  I started by taking my RF topper from my Mando bucket and took a forstner bit to it, but it wasn't large enough to contain the light. So I built a topper from scratch. It still needs to be cleaned up and what is pictured isn't from the mold I'll be using. I made my "Master" from scratch. Molded it not to destroy it if it didn't work. Then took a clear encapsulating epoxy and poured it into my master mold. That is what you see. The "refined" mold has a finished topper setting up in it now (takes 24hrs to cure) so I basically roughed in this one similar to the refined topper. You follow? Doesn't really matter. This post is basically to show how the colors will look in the topper. The top of the rf topper will be held on by magnets. The top of the topper in the picture is loose. Anyway... pictures!
Available in Amber, Blue, Bright White, Green, Pink, Red, Teal, UV Purple, and Warm White.

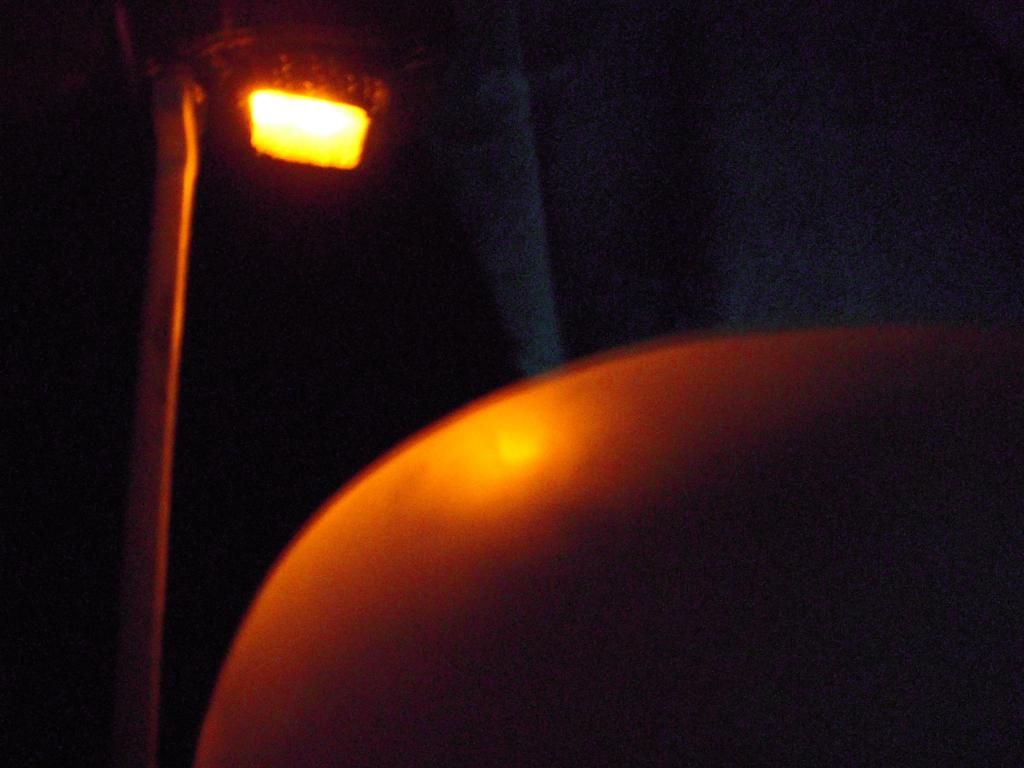

AMBER

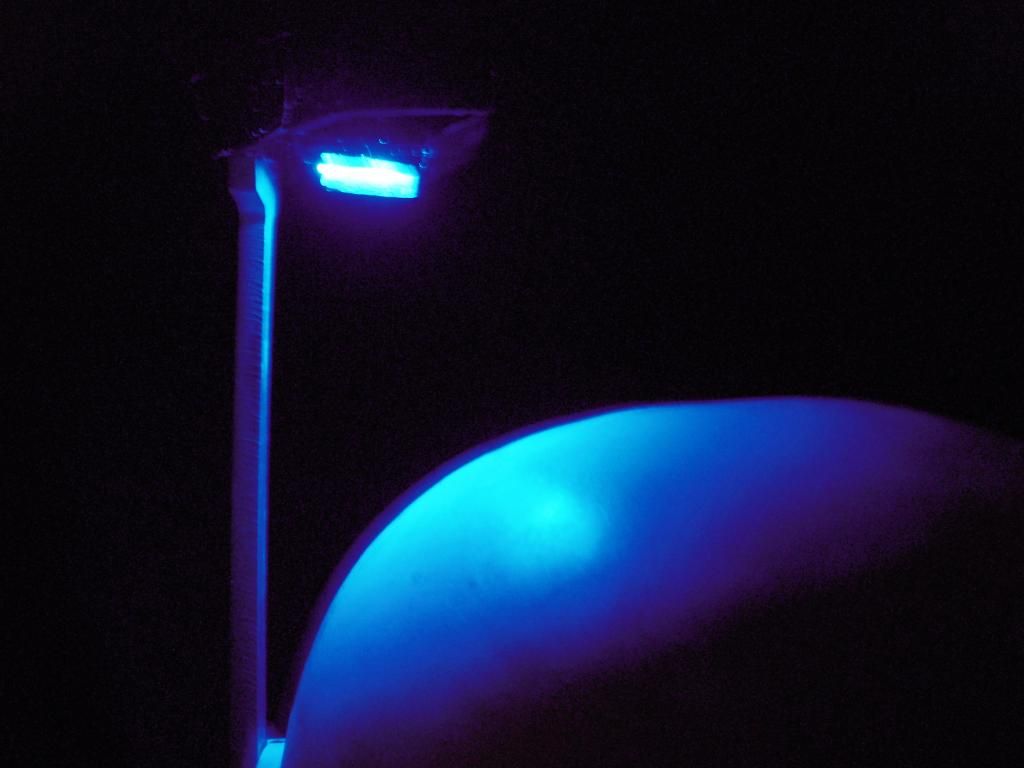

BLUE

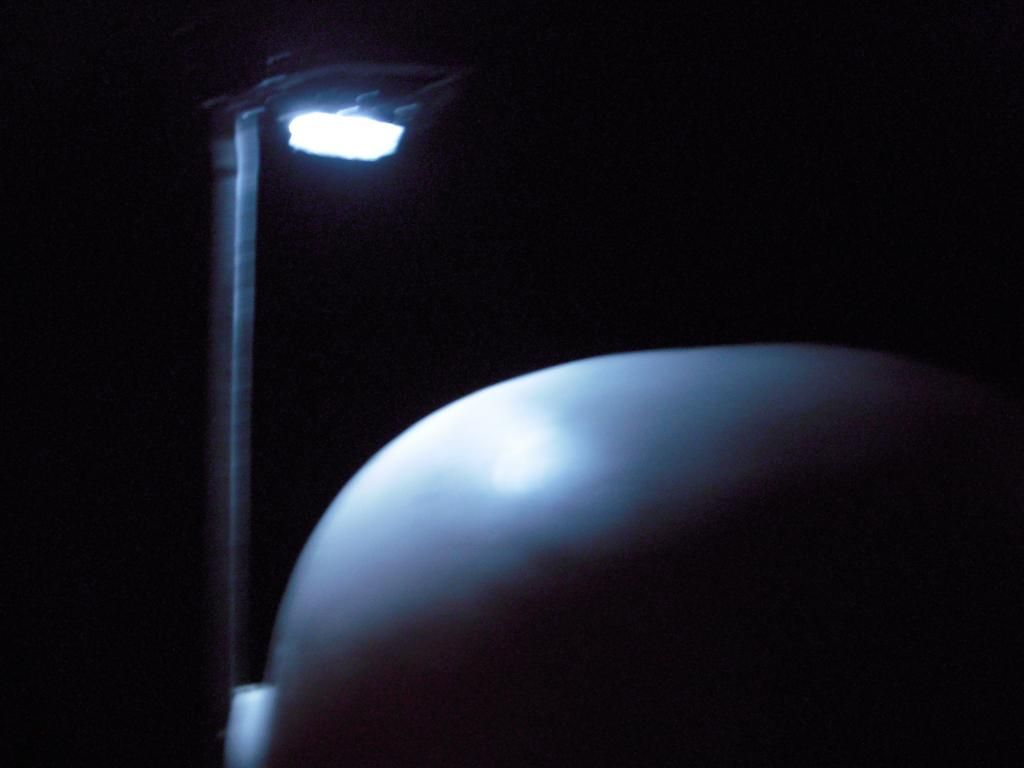

BRIGHT WHITE

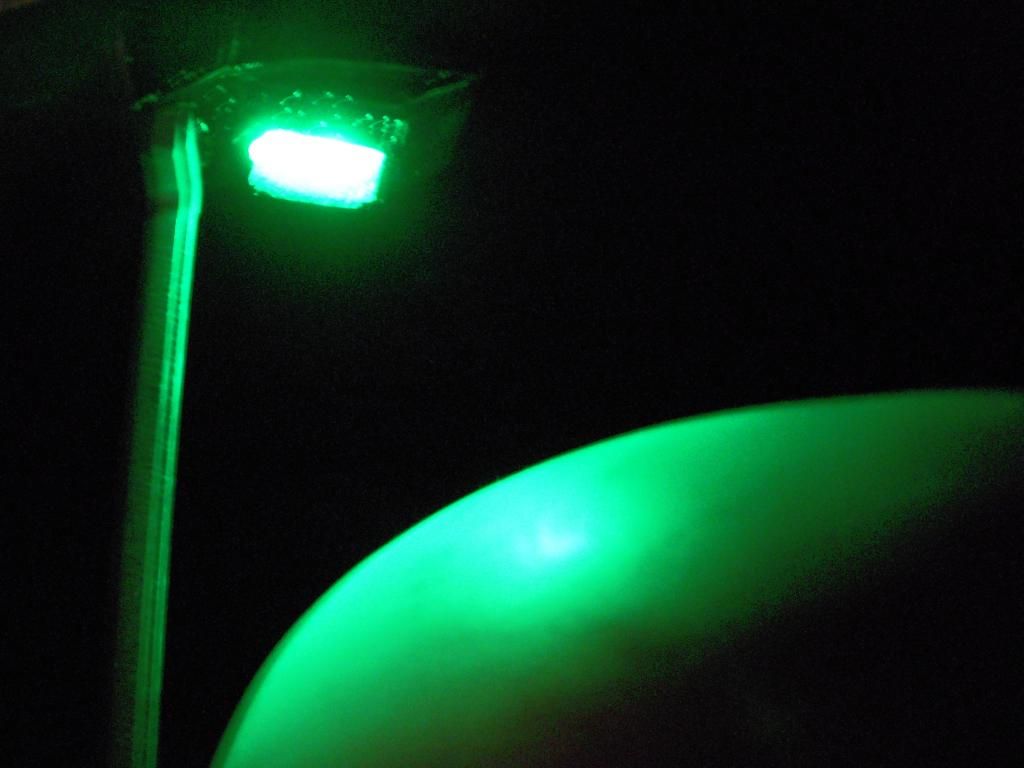

GREEN


PINK

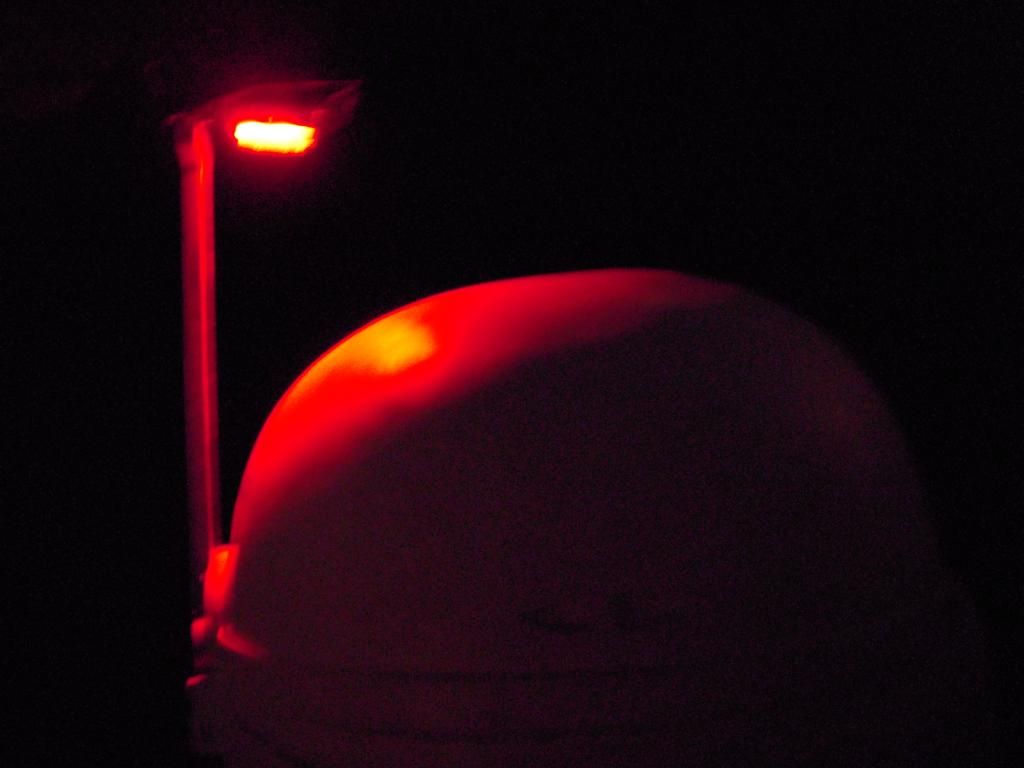

RED


TEAL


UV Purple

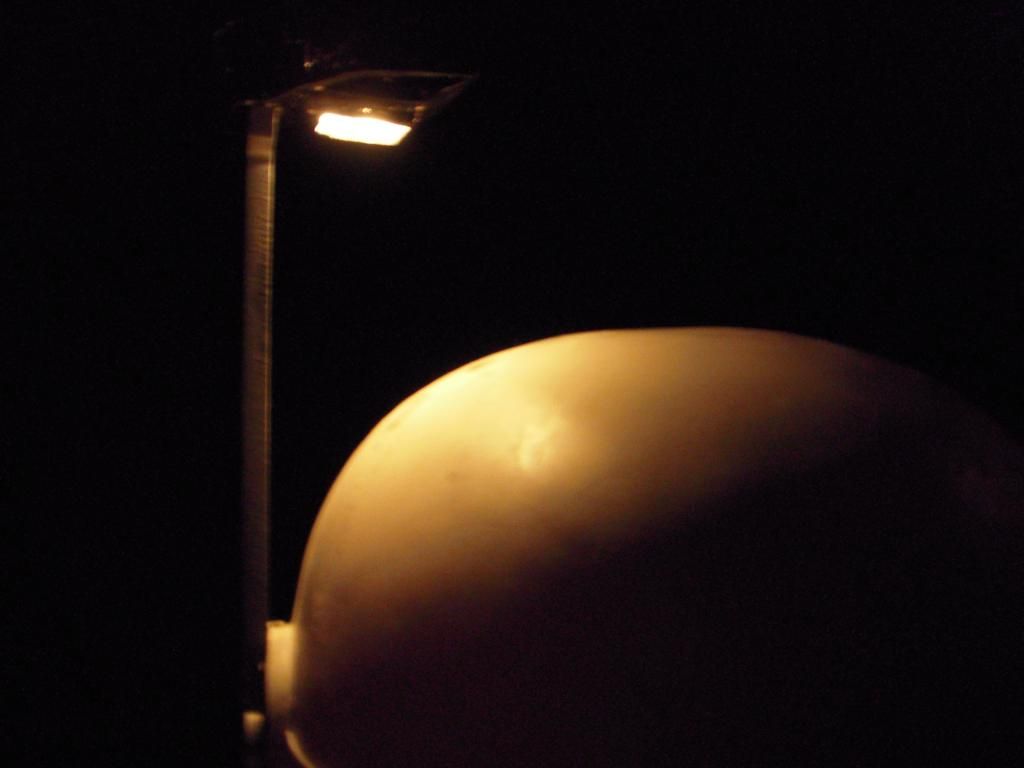

WARM WHITE

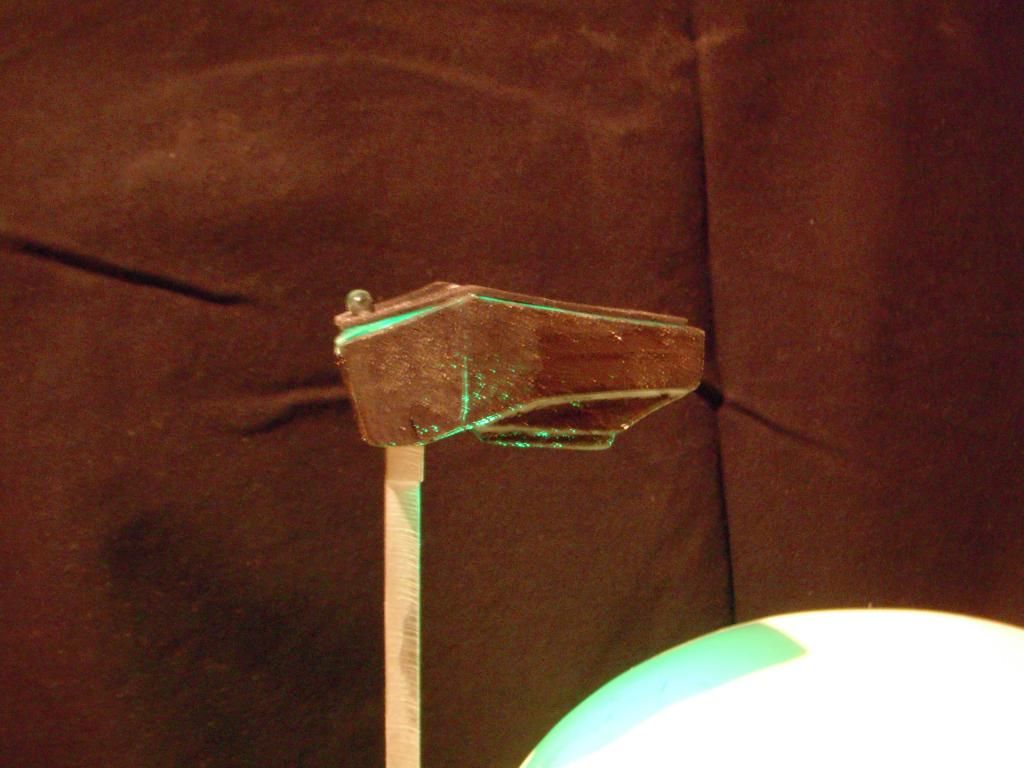

So this is the topper. Quick flat black rattlecan on it. It has the green light in it in the pic. The top is just sitting on it, no magnets installed, don't judge it yet. It is cast in clear epoxy, and painted black to block out the areas I didn't want light. Only the bottom of the topper (viewfinder) was left clear. I'll have pics of a clear unpainted version in a day or so. Note that the top 2 LED's do not light up. Still working on that. This topper is meant to be a budget conscious upgrade to those that want lights, but don't want to spend $150 on a light kit. Quite honestly, I have no idea what to ask as far as a price for this goes, so I'll have to roll it around. I'm thinking I will add the option to upgrade to aluminum stalks with the toppers, so that will factor into the price. These toppers are slotted on the bottom to accept the aluminum stalks I use. Ok... it's late, I'm babbling, LET ME KNOW YOUR THOUGHTS!!!!
